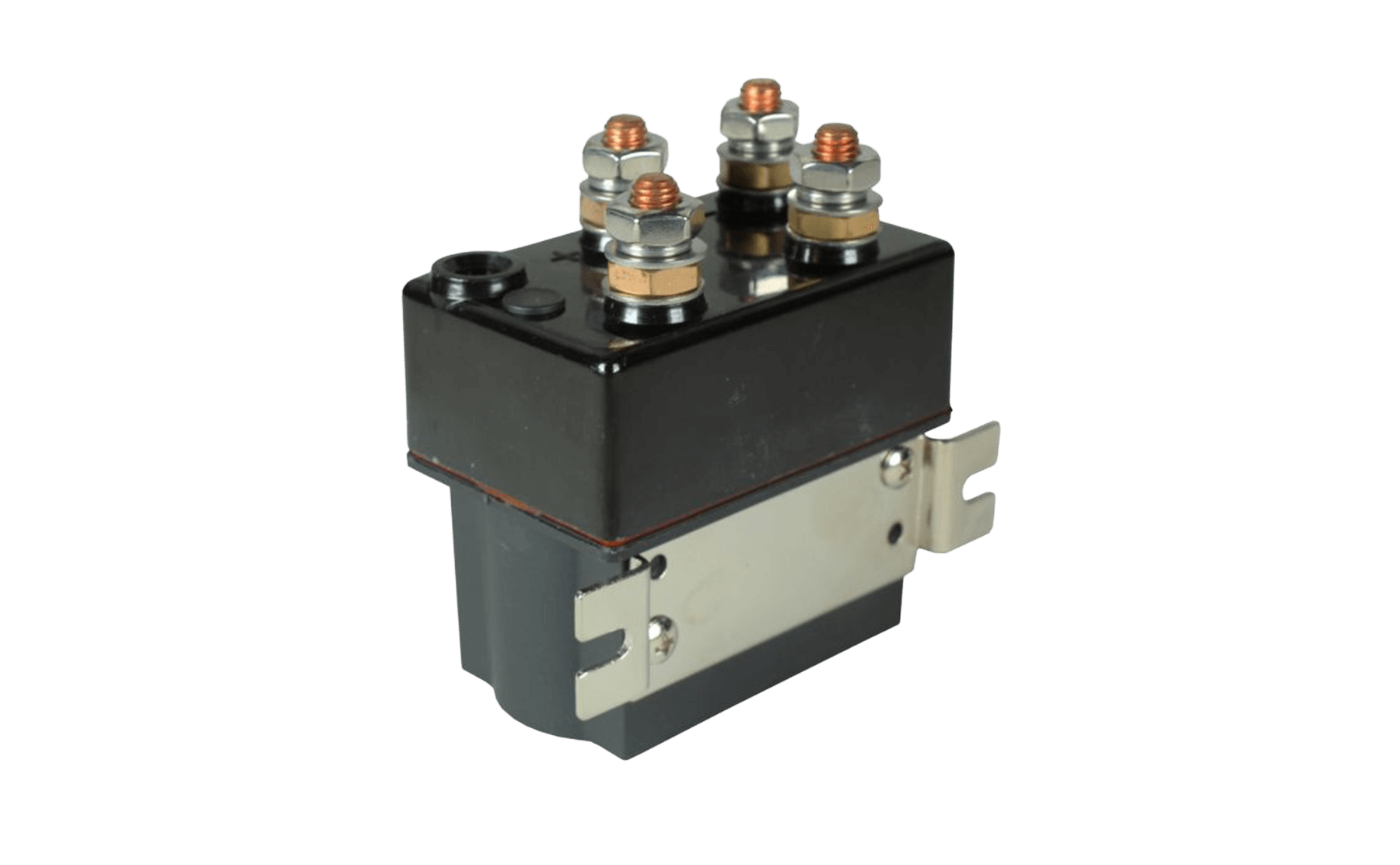

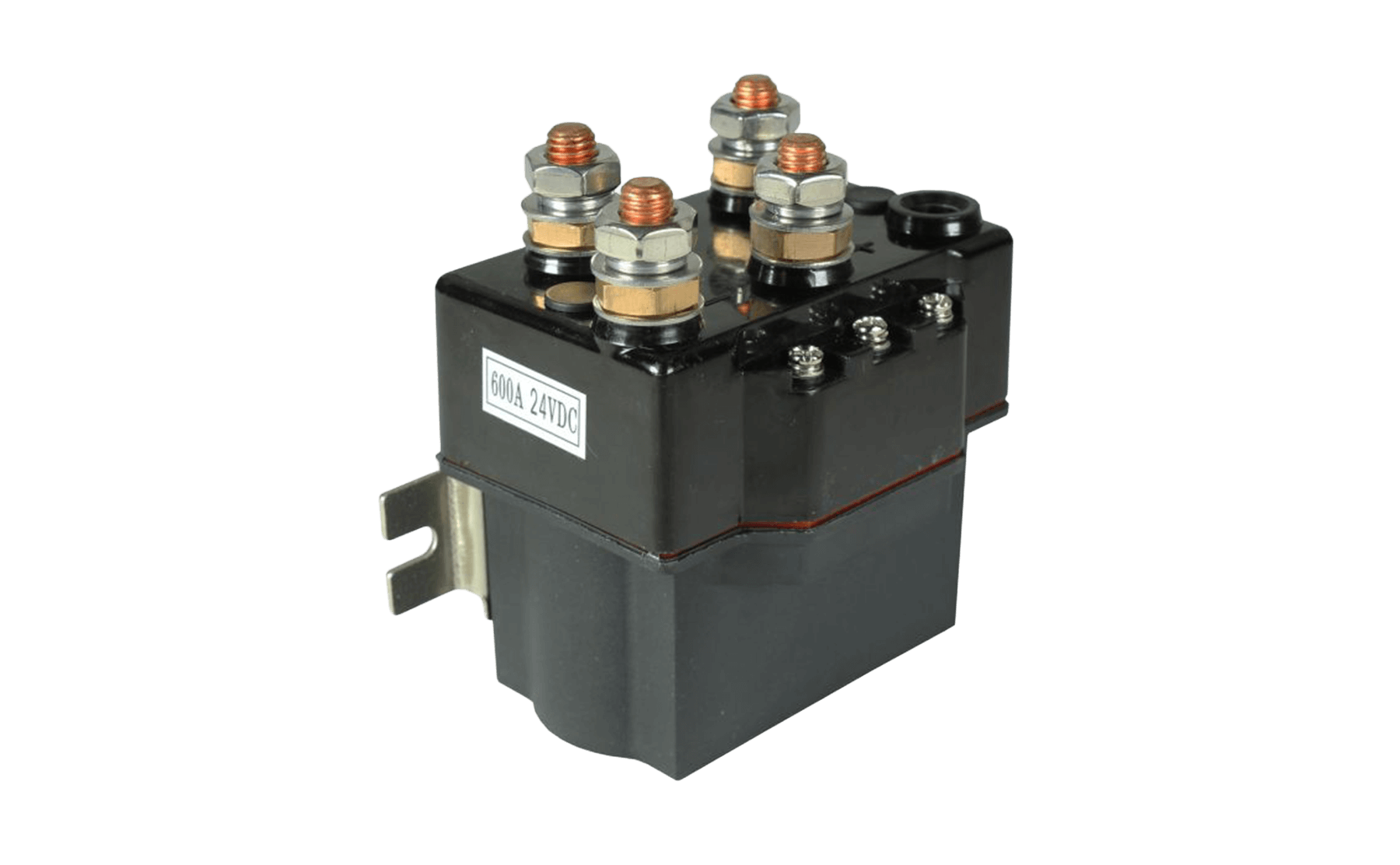

Premium 600 Amp Heavy Duty 24v Solenoid Block
These heavy duty Albright style sealed 600 amp 24v solenoid blocks are much more reliable than the old individual solenoids. These solenoids can be fitted to most solenoid operated winches that are on the market and can also be used as a direct replacement for Albright solenoids. These are wireless remote compatible and works with both series wound and permanent magnet motors.
Applications:
- Max Amps = 600 A
- Voltage = 24v
- Winches From 8000lb to 25,000lb
- Wireless Remote Compatible
- Series Wound and Permanent Magnet Motors
Dimensions:
- Overall Height = 95mm
- Main Body Height = 75mm
- Overall Width = 85mm
- Overall Depth = 60mm
- Terminal Height = 20mm
- Terminal Size = M10
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
